TR-E100GQSFP28SR

Earn up to 82 points.$82.09 USD

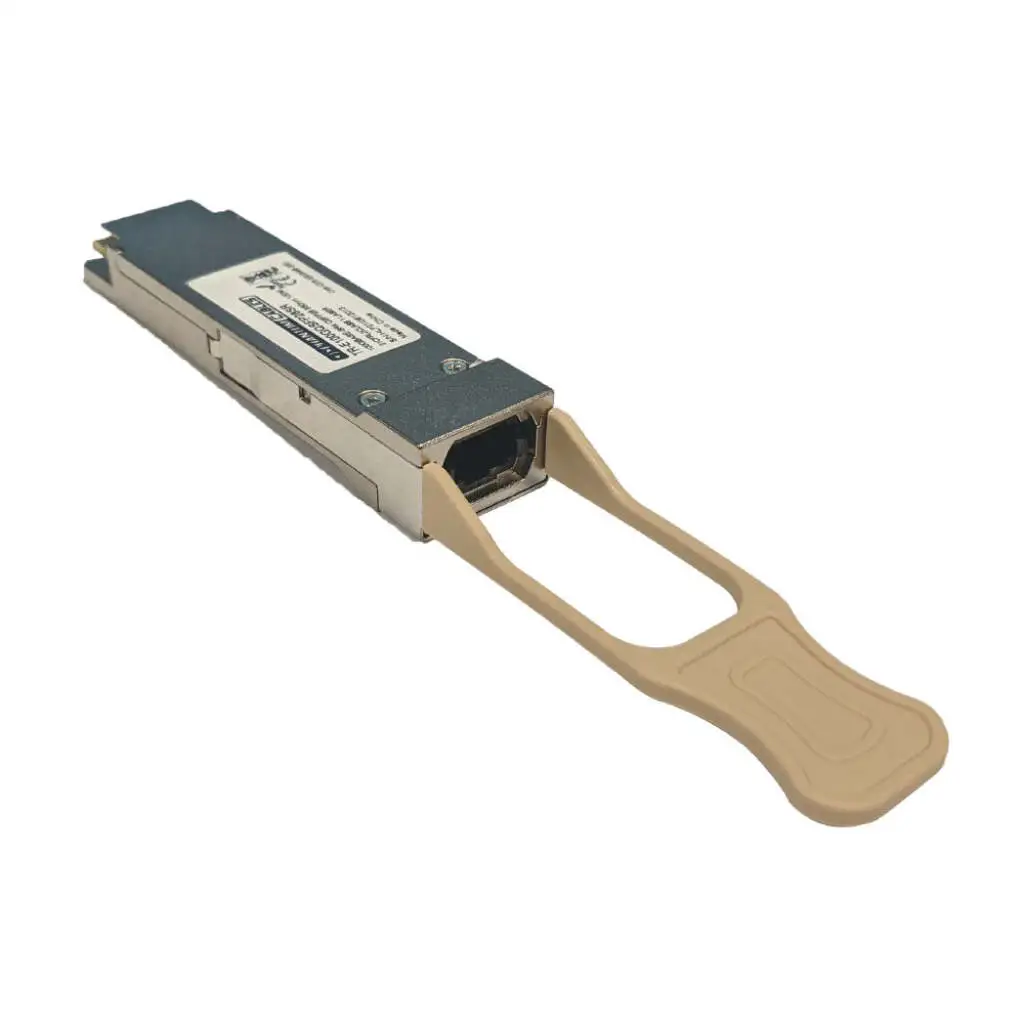

Intel® E100GQSFP28SR Compatible 100GBASE-SR4 QSFP28 850nm MM MPO 100m Transceiver – Intel

Are you an organization, school board, reseller, or government agency? Join our partner program to unlock exclusive savings and support.

Join our Partners Program and Save
SKU: TR-E100GQSFP28SR Category:
Description

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 100 Gbps up to 100m over multimode fiber cable. It is used in compatible network devices with a QSFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.

Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation. This product is not certified or endorsed by Intel.

Physical Characteristics
Dimensions 57mm x 15mm x 9mm (L x W x H)
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Laser Type Class 1
Connectors
Connector MPO/MTP
Performance
Media Supported 100GBase-SR4 Multimode Fiber
Maximum Transmission Distance

150m with 50/125µm OM4 MMF
100m with 50/125µm OM3 MMF

Wave Length 850nm
DDM Support

Yes

Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01kg]
Warranty Information
Warranty 5 Year Warranty

Spec Sheets

Download attachment

REACH Certificate

RoHS Certificate

Additional information
Weight

Dimensions

Condition

New , New Open Box , Refurbished , Used
