FO-210-03

Earn up to 36 points.$36.43 USD

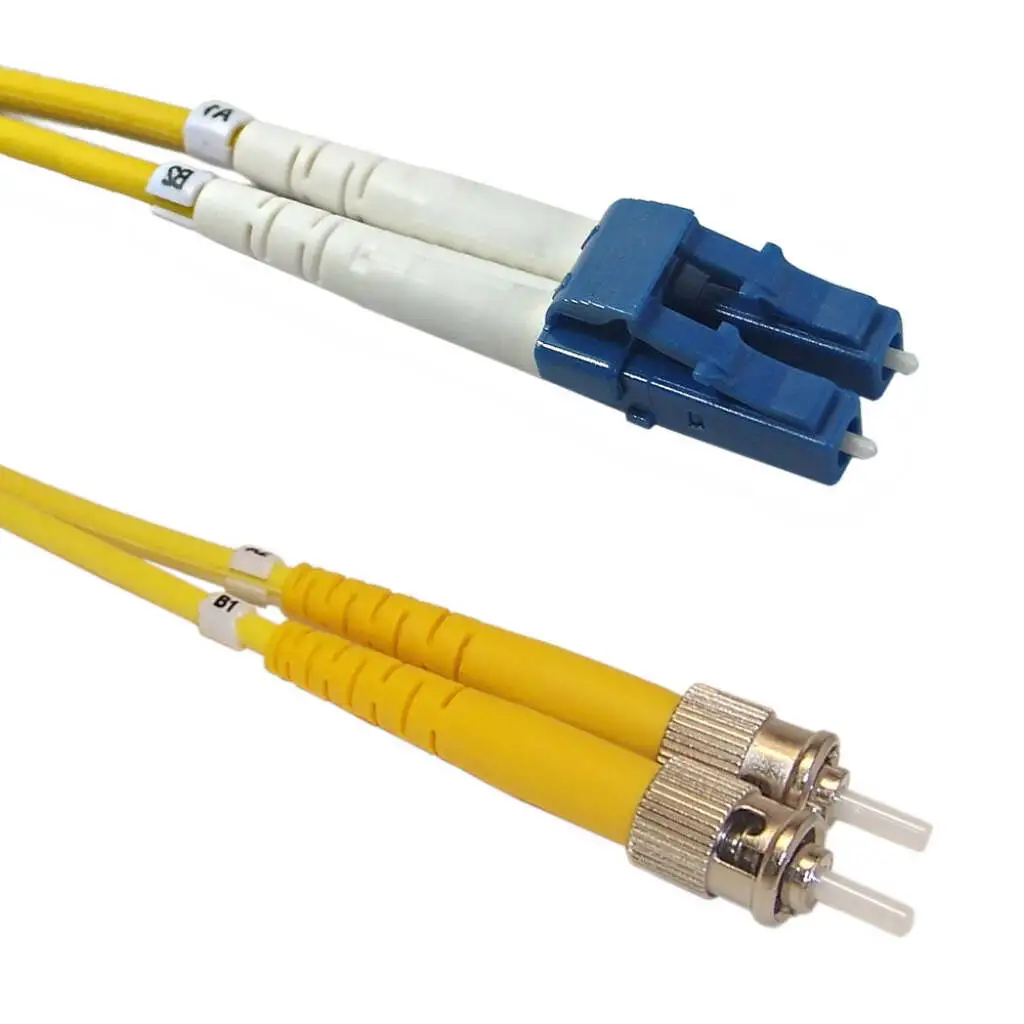

OS2 Singlemode Duplex LC/ST 9 Micron – Fiber Optic Patch Cable – 3mm Jacket – LSZH/OFNR – 1m

Are you an organization, school board, reseller, or government agency? Join our partner program to unlock exclusive savings and support.

Join our Partners Program and Save
Compare
Add to wishlist
SKU: FO-210-03
Description

Overview

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with Corning® Glass Fibers

All of our singlemode fiber cables are made with Corning® (ClearCurve LBL) glass for optimal performance and quality.

Individually Serialized Cables

Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.

Dual Rated LSZH/OFNR Rated Jacket

These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.

100% Fully IL & RL Tested

Our singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report.

Ceramic Ferrule

All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.

3D Interferometer Tested

Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.

Certifications

Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.

Lifetime Warranty

Our cables come with a limited lifetime warranty against manufacturing defects.

Application

Specifications

Physical Characteristics
Color Yellow
Cable Diameter 3mm
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass (ClearCurve LBL)
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Low Smoke Zero Halogen (LSZH) & Riser (OFNR)
Operating Temperature -20°C ~ +70°C
Connector(s)
Connector A LC/UPC Duplex Male
Connector B ST/UPC Duplex Male
Performance
Insertion Loss <0.3db @ 1550nm
Return Loss ≥50db
Interferometer Tested 100% Tested
Approvals
c(UL)us Yes – Cable
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
1.5ft – 0.5m 3ft – 1m 5ft – 1.5m 6ft – 2m 10ft – 3m 13ft – 4m 15ft – 5m 20ft – 6m 23ft – 7m 26ft – 8m 30ft – 10m 40ft – 12m 50ft – 15m 65ft – 20m 80ft – 25m 100ft – 30m 115ft – 35m 131ft – 40m 148ft – 45m 164ft – 50m
0.05 lbs 0.08 lbs 0.08 lbs 0.09 lbs 0.13 lbs 0.16 lbs 0.20 lbs 0.23 lbs 0.29 lbs 0.30 lbs 0.38 lbs 0.44 lbs 0.52 lbs 0.77 lbs 0.86 lbs 1.03 lbs 1.17 lbs 1.39 lbs 1.70 lbs 2.05 lbs

Spec Sheets

Download attachment – FO-210-xx_spec_sheet

REACH Certificate

RoHS Certificate
