BK-CON446-BK

Earn up to 306 points.$306.46 USD

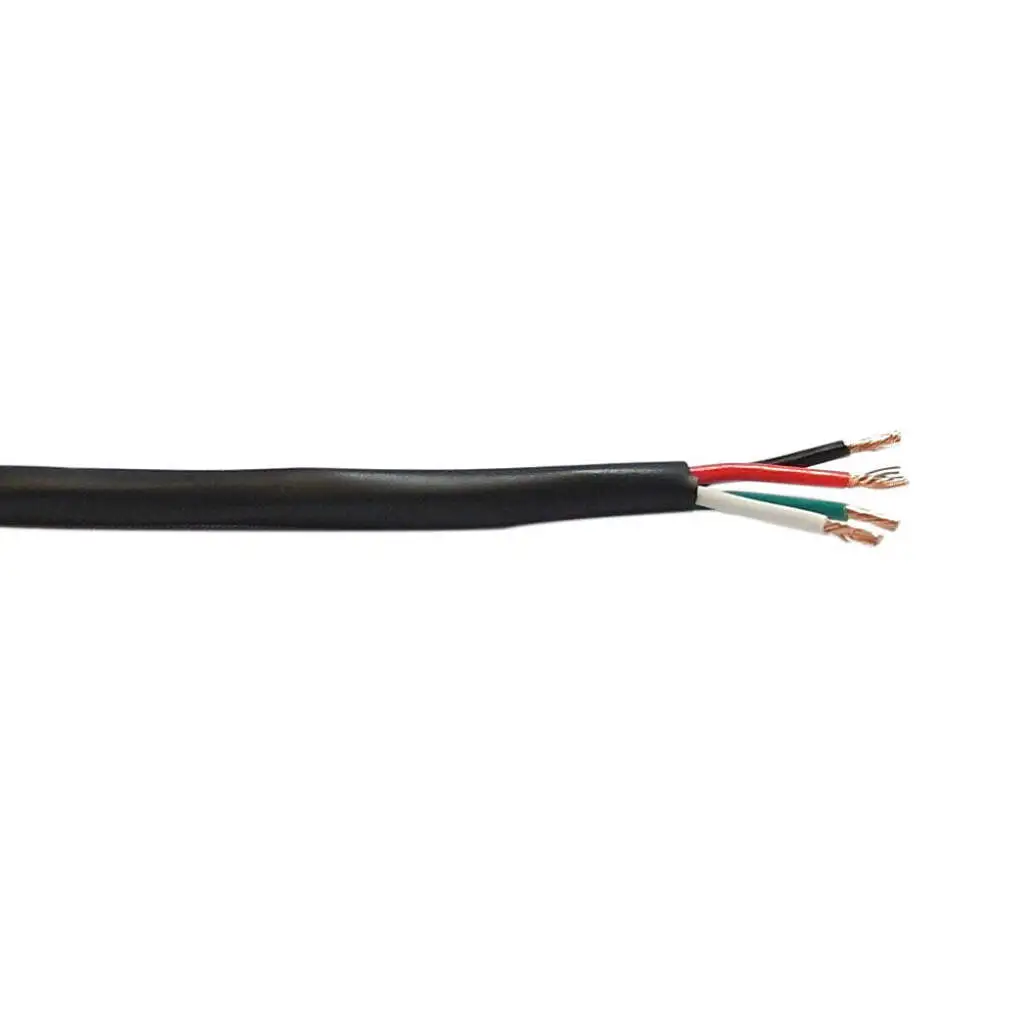

1000ft 4C 18AWG Stranded Control Cable – CMR Shielded – Black

Are you an organization, school board, reseller, or government agency? Join our partner program to unlock exclusive savings and support.

Join our Partners Program and Save
SKU: BK-CON446-BK Category:
Description

This 4 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics
Cable Lengths Available 1000 foot [305m] Pull Box
Color (Jacket) Black
Number of Conductors 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC)
Jacket Material PVC
Outer Diameter 5.8mm
Wire Gauge 18 AWG
Material (conductors) Bare Copper
Stranding 16/0.25mm
Insulation Material PVC
Nominal Insulation Thickness 0.38mm
Nominal Insulation Diameter 1.9mm
Shielding Overall Foil Shielded 110%
Drain Wire 7*0.2mm Tinned Copper Drain Wire
Ripcord Nylon
Temperature Rating -20℃ ~ 75℃
Operating Voltage 300V
Flammability Test In Wall CMR/FT4
Mechanical Characteristics
Before Tensile Strength >=13.8
Aging Elongation (%) >=100
Aging Condition (℃xhrs) 100×168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
Certifications
RoHS Yes
Reach Yes
c(ETL)us Yes
Packaging Information
Package Quantity 1 Pull Box
Product Weight 40 lbs

Spec Sheets

Download spec sheet

REACH Certificate

RoHS Certificate
